Braker Plate
Cut by Hydraulic Power press with precision module Burr free cutting Precise size with perfect radius Available in any oval size Inform us Width & length with Mesh Numbers
Get Quote
Suitable For
Discover More
Product Features:
Designed to match specific housings, cartridges, or filtration systems, ensuring minimal bypass and better sealing.
- Rounded edges prevent mesh fraying and increase resistance to tearing under stress.
- Available in woven wire mesh, sintered mesh, or layered mesh for improved particle retention and flow rate balance.
- Corrosion-resistant, pressure-resistant, and capable of withstanding high-temperature operations.
Hydraulic & lubrication systems
Chemical processing filters
Water and gas filtration
Machinery intake screens
Automotive and aerospace filters
Food & beverage processing equipment
- Produced with CNC cutting or laser profiling for exact dimensional accuracy.

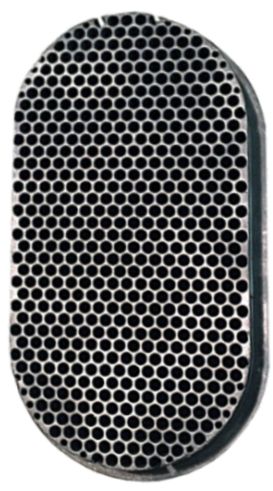

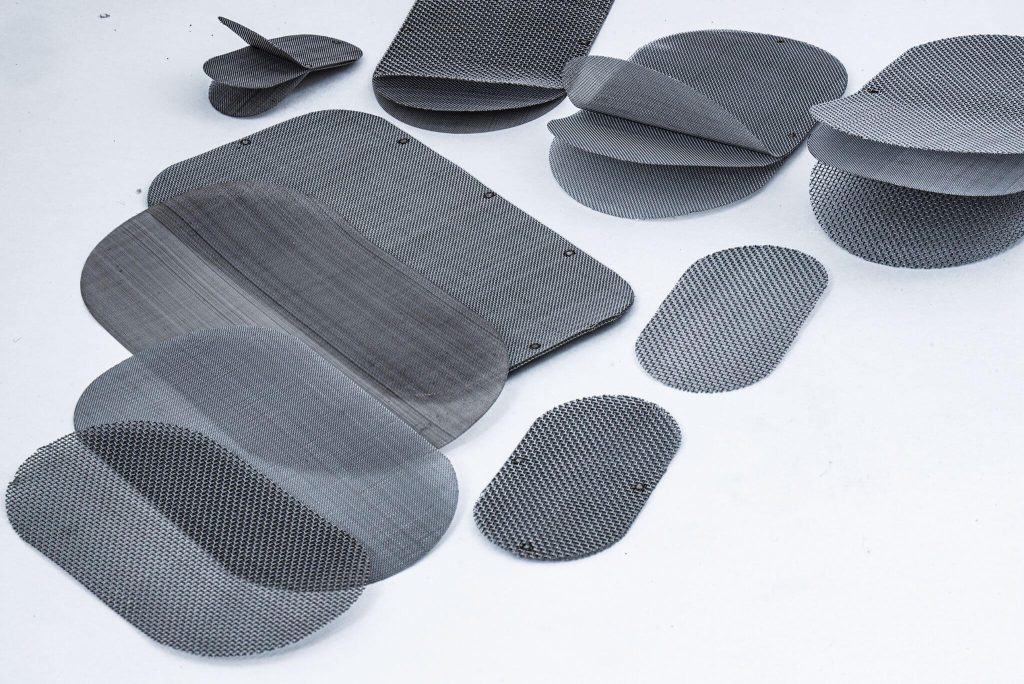

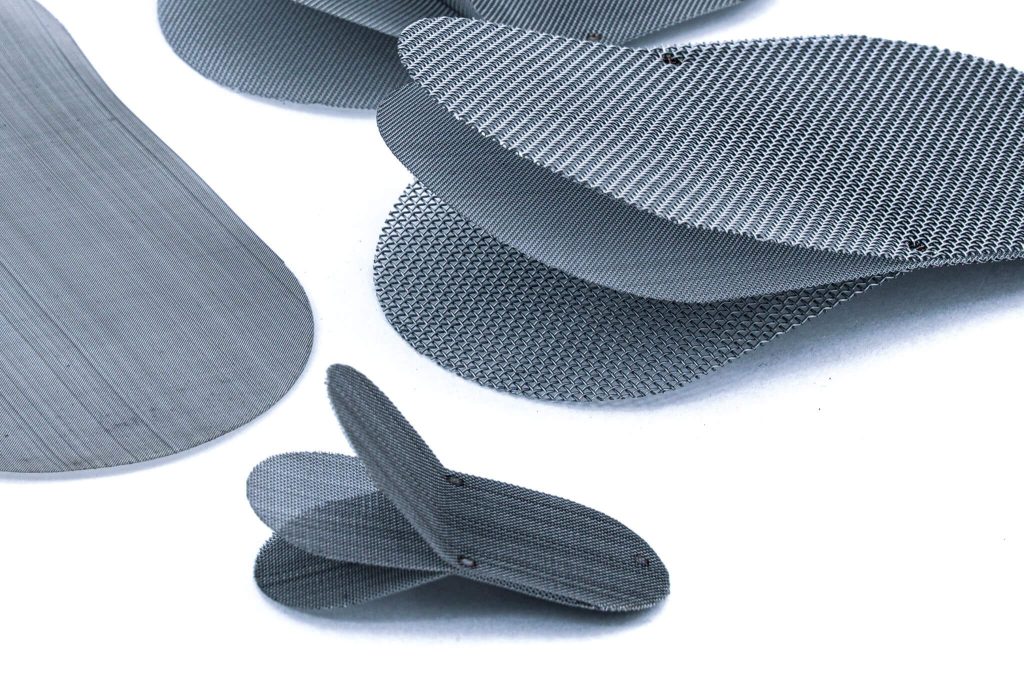

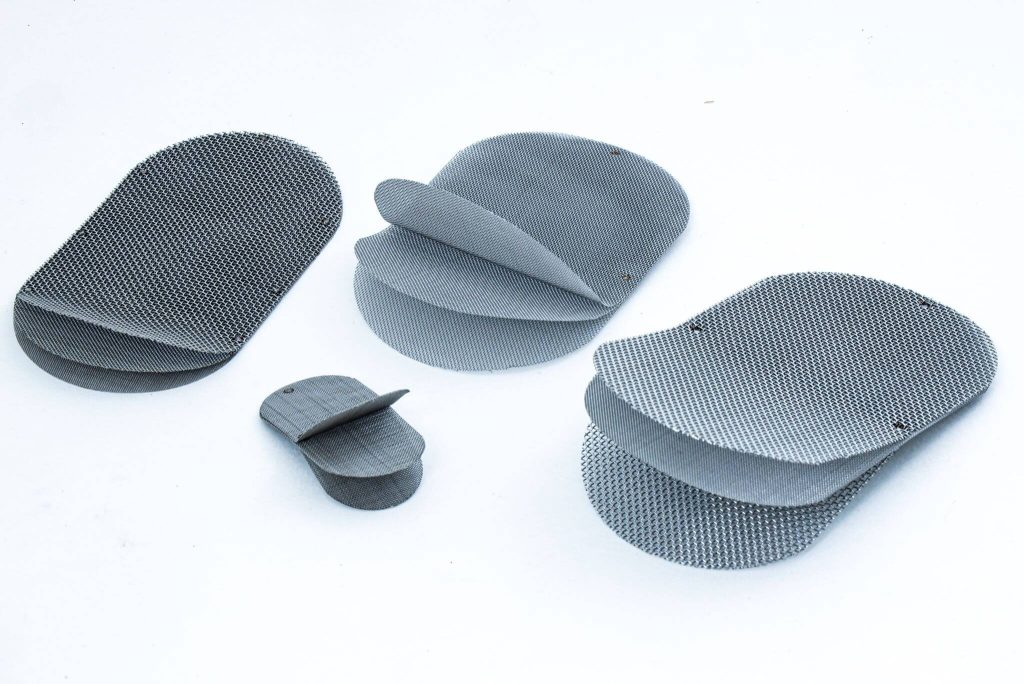

Oval Shaped Filters & Rectangle Screens with Radius

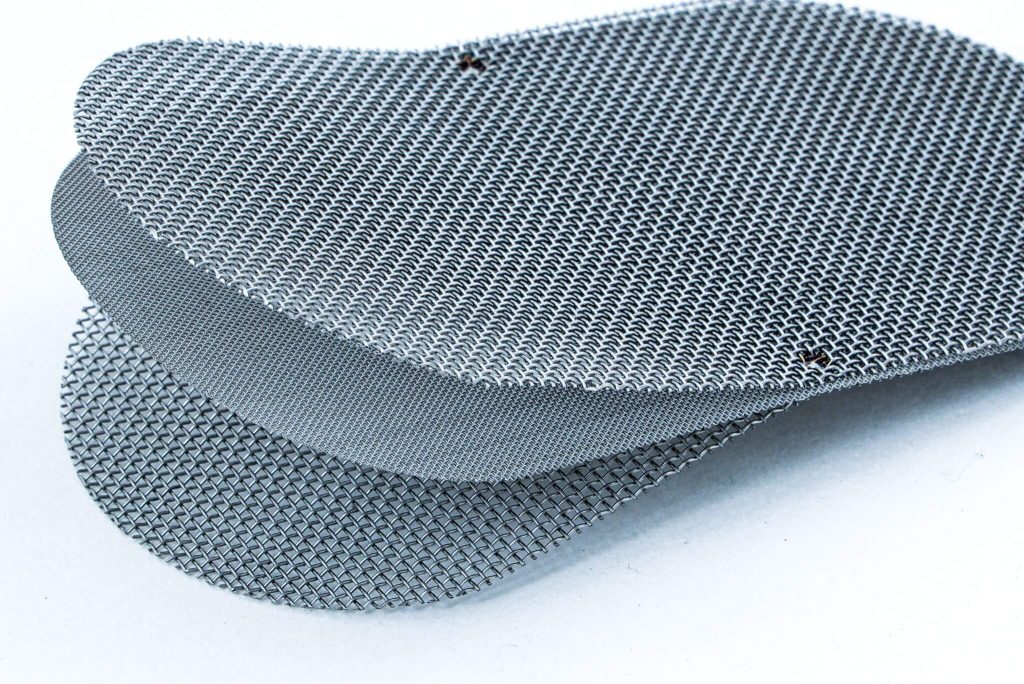

Oval Shaped Filters and Rectangle Screens with Radius are custom-shaped wire mesh filtration components designed to provide high-precision filtering while fitting seamlessly into unique housings and equipment. These filters are fabricated from high-quality stainless steel or galvanized wire mesh and can be produced in single-layer, multi-layer, or reinforced designs depending on the filtration requirements. The rounded corners or oval profiles reduce stress points, improve sealing, and enhance durability in high-pressure or high-vibration environments.
| Feature | Description |
|---|---|
| Material | Stainless Steel (SS 304, SS 316, SS 316L), Galvanized Iron (G.I.), or custom alloys |
| Shapes Available | Oval, Rectangle with Rounded Corners (Radius) |
| Construction | Single-layer, multi-layer, or spot-welded mesh |
| Mesh Count | 4–500 mesh depending on application |
| Wire Diameter | 0.02–1.2 mm |
| Filtration Rating | 5 microns – 2000 microns |
| Surface Finish | Bright, polished, and burr-free |
| Temperature Resistance | Up to 800°C for stainless steel |
| Customization | Shape, radius size, mesh type, and frame options |
| Delivery | Ready stock in standard designs; custom production available |
Custom Shapes for Perfect Fit:
Designed to match specific housings, cartridges, or filtration systems, ensuring minimal bypass and better sealing.Radius Corners Enhance Strength:
Rounded edges prevent mesh fraying and increase resistance to tearing under stress.Material & Layer Options:
Available in woven wire mesh, sintered mesh, or layered mesh for improved particle retention and flow rate balance.High Durability:
Corrosion-resistant, pressure-resistant, and capable of withstanding high-temperature operations.Applications:
Hydraulic & lubrication systems
Chemical processing filters
Water and gas filtration
Machinery intake screens
Automotive and aerospace filters
Food & beverage processing equipment
Manufacturing Precision:
Produced with CNC cutting or laser profiling for exact dimensional accuracy.
