Shape – Round / Square
Gauss power- regular (2000) , 5000, 10000 to 11000

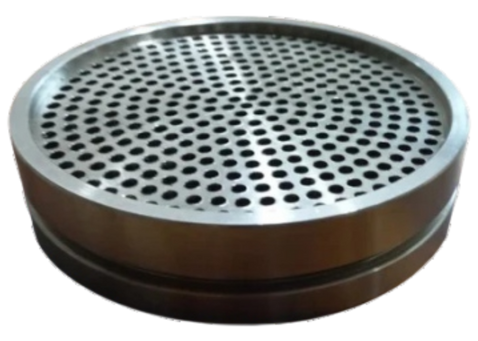

Information about proper
mesh combination
suitable to final products.
Get Quote
Suitable For
Discover More
Product Features:
Engineered with robust grilled and rod-style configurations, these hopper magnets deliver dependable, long-lasting magnetic filtration. Designed for consistent performance, they effectively capture ferrous impurities, ensuring cleaner material flow and enhanced equipment protection across processing systems.
- Provides magnetic intensity ranging from 1400 to 10,000 Gauss, catering to a wide spectrum of contamination levels.
Ensures efficient separation of ferrous particles, from fine iron dust to larger contaminants. - Adaptable magnet strength options allow custom-tuned separation based on specific material properties and process demands.
- Built from high-grade stainless steel (SS 304/316) and durable aluminum framing for corrosion resistance.
- Designed to perform in challenging industrial conditions, ensuring structural integrity and longevity.
- Minimizes downtime through wear-resistant build quality, reducing the need for frequent maintenance.
- Available in a wide range of shapes including circular, square, and rectangular models.
- Custom dimensions can be tailored to fit unique hopper or machine designs.
- Optimized layouts for various flow capacities, material densities, and line speeds.
- Compatible with diverse system types including hoppers, silos, and chutes.
- Trusted across industries such as plastics, food processing, pharmaceuticals, and chemicals.
- Ideal for filtering metallic contaminants from powders, granules, resins, and liquids.
- Helps maintain product purity, process integrity, and equipment longevity.
- Essential for meeting regulatory and quality control standards in sensitive applications.
- Readily available in standard sizes for fast dispatch and minimal lead time.
- Plug-and-play installation in hoppers, pipelines, and feeder systems.
- Customized options available to match unique processing requirements.
- Reprocessing models feature wider rod spacing to allow smooth flow of recycled or bulkier materials.

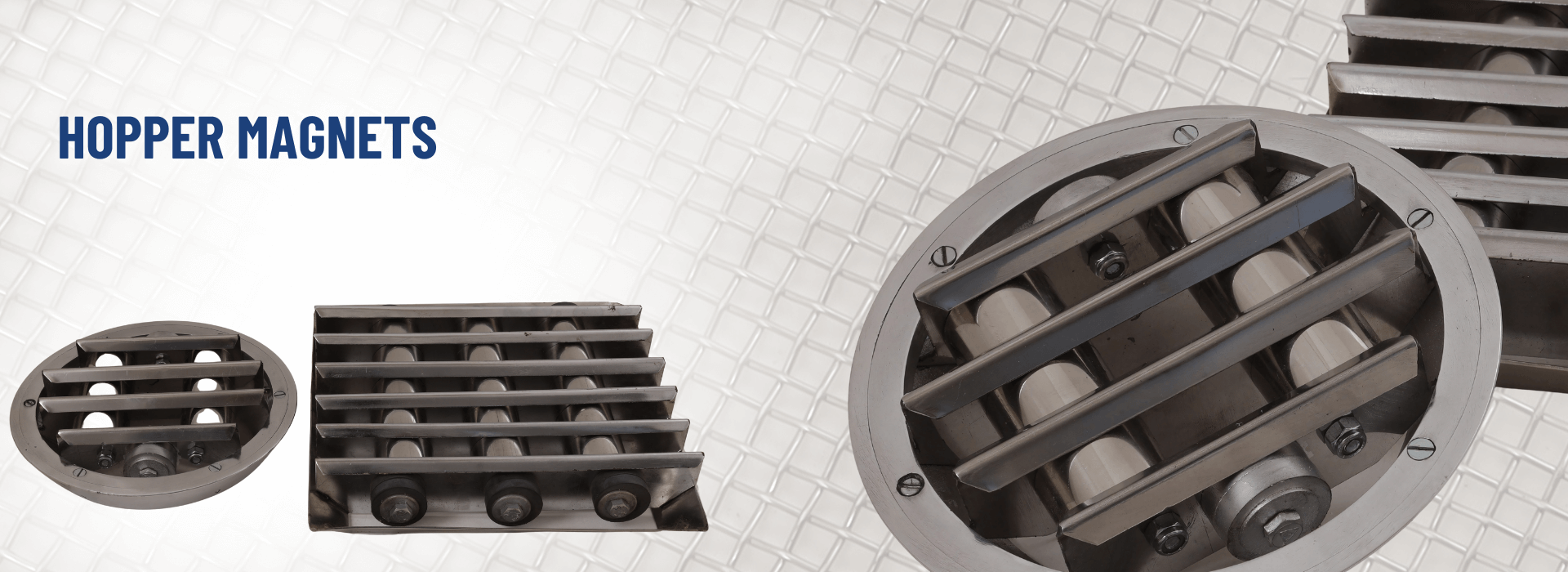

grilled & rod type hopper magnets

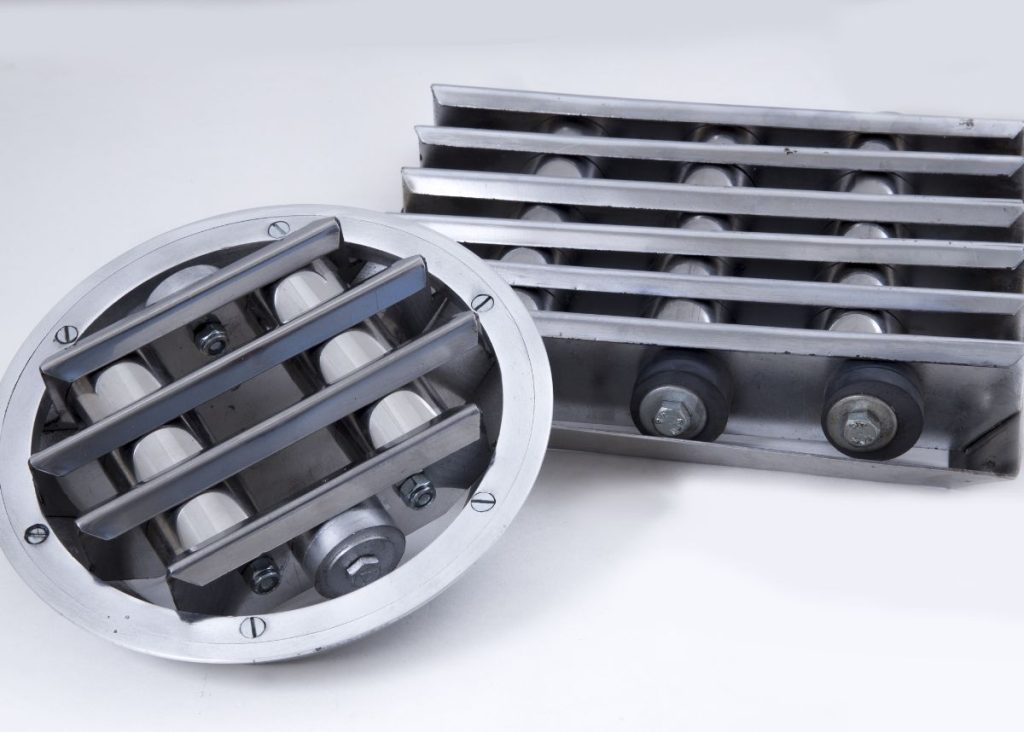

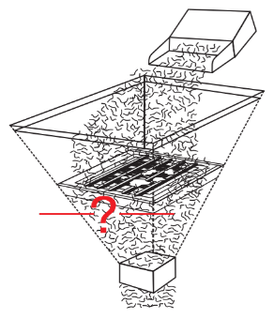

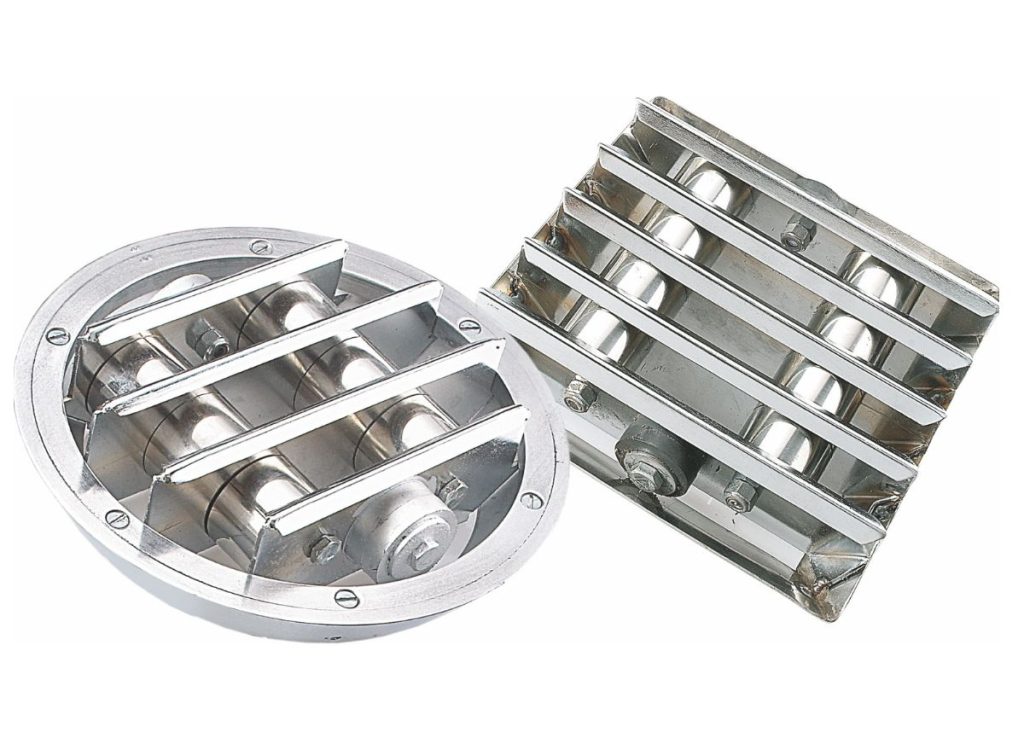

Grilled & Rod Type Hopper Magnets are designed to remove ferrous contaminants such as nuts, nails, iron filings, bolts, and pins from free-flowing materials. These magnets are installed directly into hoppers, feed throats, or chutes to ensure product purity and equipment protection.
| Feature | Description |
|---|---|
| Type | Grilled & Rod Type Hopper Magnet |
| Magnetic Strength | 1400 to 10,000+ Gauss |
| Magnet Type | Rare Earth (NdFeB) or Ferrite Permanent Magnets |
| Rod Diameter | 25 mm (customizable) |
| Rod Spacing | Standard and Reprocessing Type (wider gap) |
| Material | SS 304 / SS 316 (Food Grade Optional), Aluminum Frame |
| Shapes Available | Round, Square, Rectangular |
| Mounting | Drop-in fit or Bolt-mounted in Hopper, Feed Throat |
| Cleaning Type | Manual Cleaning / Optional Easy-Clean Design |
| Surface Finish | Mirror or Matt Finish |
| Temperature Resistance | Up to 80°C (Higher on request) |
| Applications | Plastics, Food, Pharmaceuticals, Chemicals, Reprocessing |
| Purpose | Captures ferrous contaminants like nuts, bolts, iron filings, pins |
| Delivery | Quick delivery with standard sizes in stock |
| Customization | Available in different sizes, designs & mounting types |
- Permanent Magnetic Protection:
Designed with durable grilled and rod configurations, these hopper magnets provide reliable, long-lasting magnetic protection for material handling systems, efficiently trapping ferrous contaminants. - Magnetic Strength:
Built with high-grade magnetic materials, our hopper magnets offer superior magnetic strength to ensure maximum removal of ferrous particles from bulk materials, enhancing product purity and protecting processing equipment. - Material Construction:
Constructed from high-quality, corrosion-resistant stainless steel and durable magnetic cores, these magnets are engineered to withstand harsh industrial environments and frequent cleaning. - Different Designs Available:
Available in various designs including grilled, rod, and combination configurations to suit different hopper sizes and material flow requirements. - Applications:
Ideal for use in food processing, pharmaceuticals, plastics, recycling, and other bulk material handling industries where contamination control is critical. - Installation & Delivery:
Easy to install with standard flange mounting options. Delivered promptly with comprehensive support to ensure seamless integration into your existing conveyor or hopper system.
