Cut to precision by a specialized technique can be made with any diameter and center hole with any mesh size and also provide sandwich type filter packs as per requirements. Generally used in pipe/house pipe plants and many more applications.
Get Quote
Suitable For
Discover More
Product Features:
Designed to maintain consistent filtration while providing a functional center opening, these filter disks ensure smooth fluid flow or easy mounting in various assemblies.
Built for repeat use with minimal maintenance.
- Mesh openings available to capture fine, medium, or coarse particles depending on application needs.
- Center hole precision-cut for accurate alignment and secure fitting.
- Suitable for both liquid and gas filtration systems.
- Manufactured from high-quality stainless steel or galvanized iron mesh for durability and corrosion resistance.
- Multi-layer options enhance filtration accuracy and mechanical strength.
- Edges are securely finished to prevent fraying or mesh deformation.
- Customizable in outer diameter, inner (hole) diameter, mesh size, and layer configuration.
- Available in reinforced versions for heavy-duty applications.
- Suitable for clamp, bolt, or gasket-based installations.
- Compatible with flat or slightly curved mounting surfaces.
- Common in hydraulic systems, chemical processing, plastic extrusion, and fluid handling equipment.
- Used to protect pumps, valves, nozzles, and precision components from contamination.
- Ideal for installations requiring both filtration and mechanical alignment via center hole.
- Suitable for industries such as food processing, pharmaceuticals, and petrochemicals.
- Ready-to-use disks supplied to match equipment specifications.
- Easy installation in housings, flanges, or custom mounting systems.
- Custom manufacturing services available for non-standard sizes.
- Standard dimensions and mesh grades kept in stock for fast dispatch.

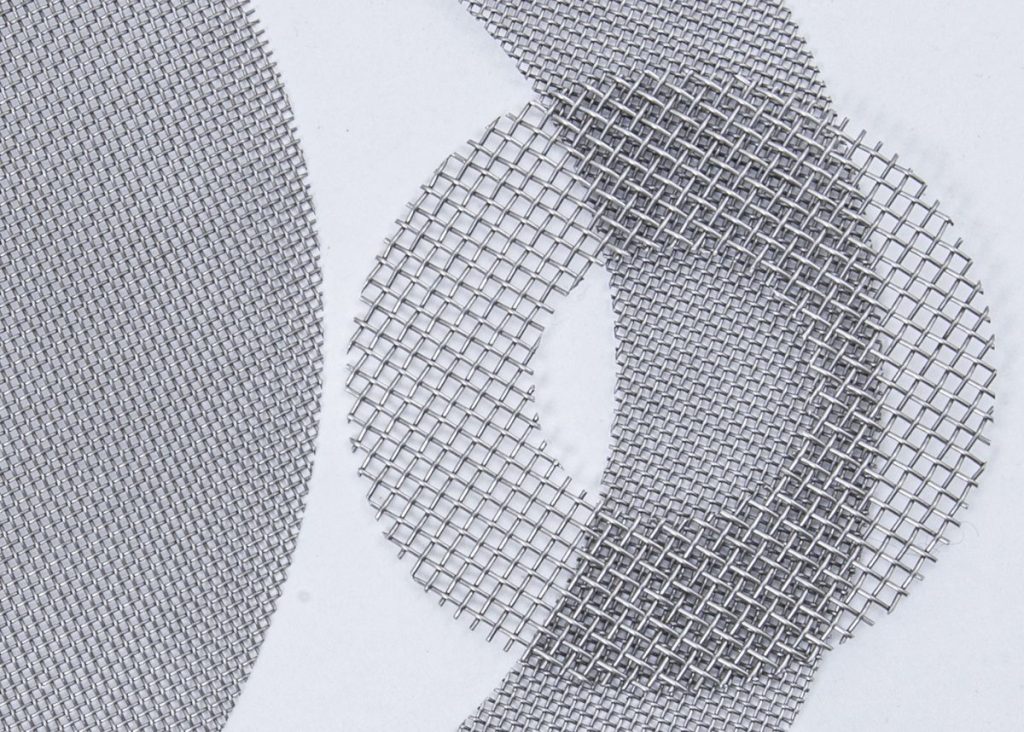

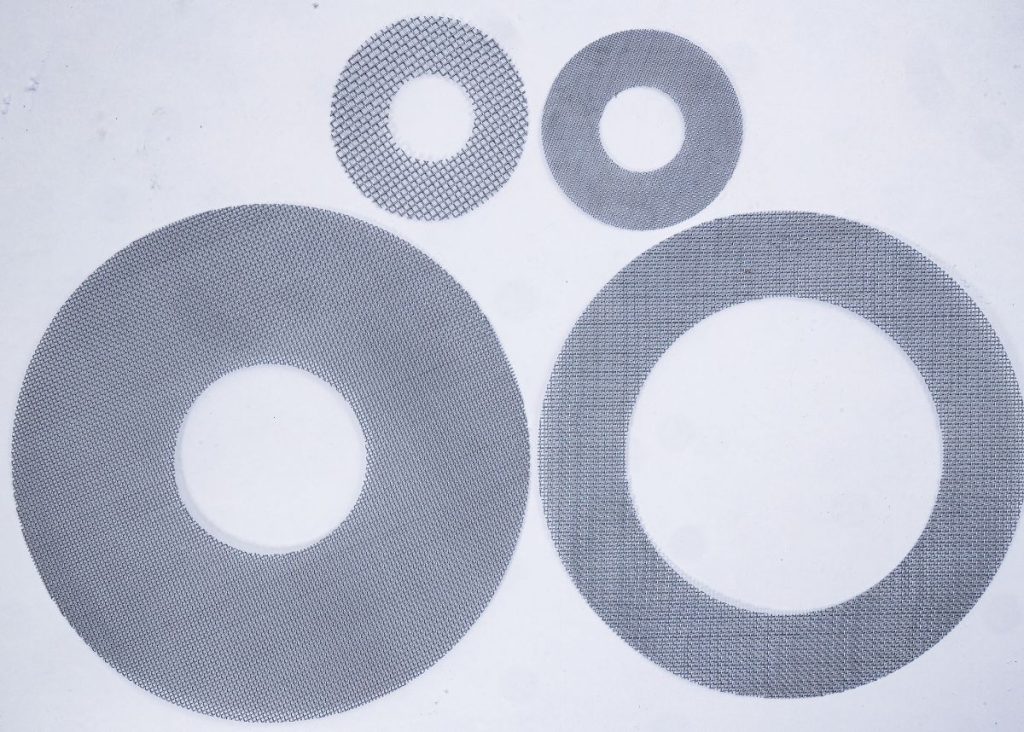

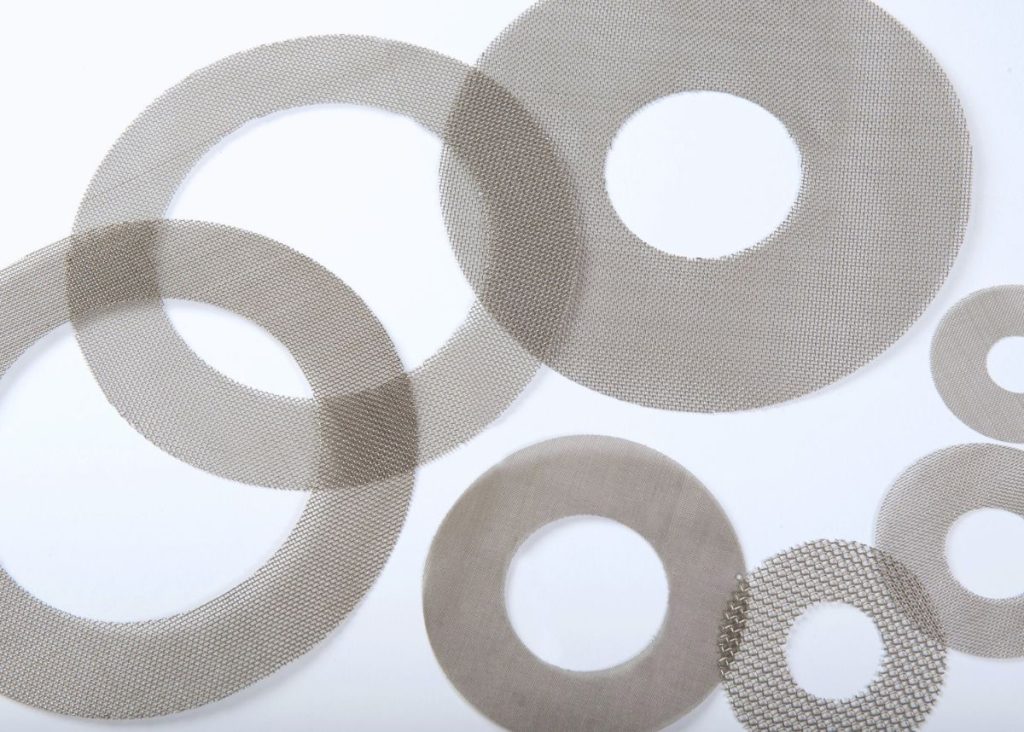

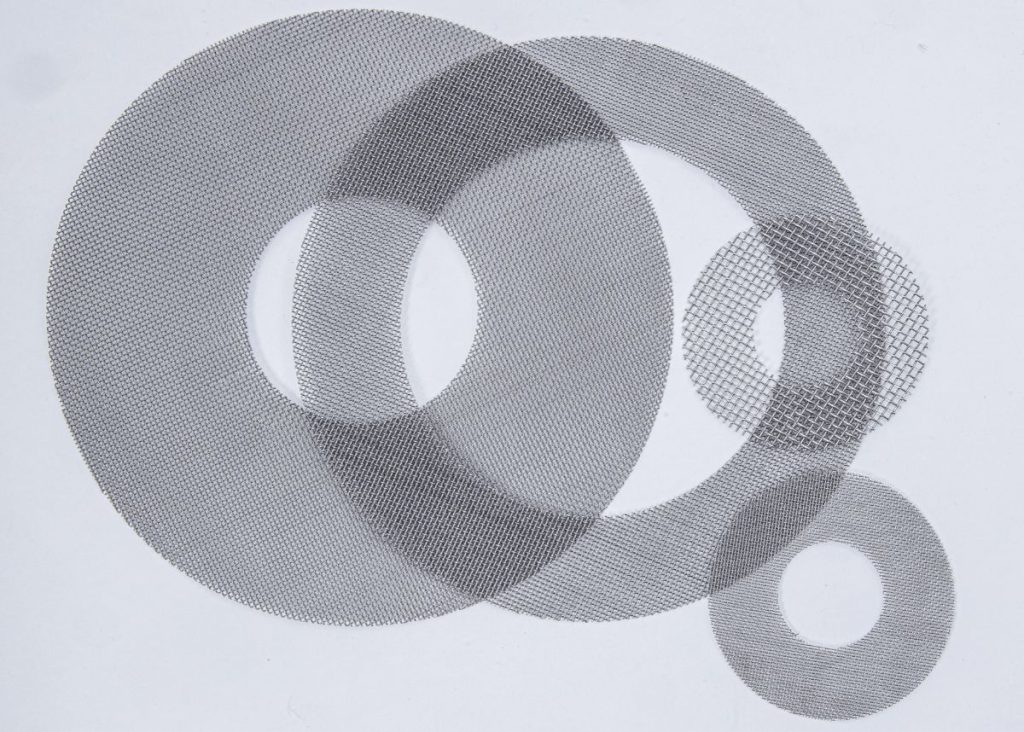

Filter Disk (Wire Mesh with Center Hole)
Filter Disks with Center Holes are precision-engineered circular mesh filters designed to provide efficient filtration while accommodating a central opening for mounting, fastening, or fluid passage. Constructed from durable stainless steel or galvanized iron wire mesh, these disks are ideal for applications where both particle separation and a specific flow path are required. Their robust build ensures long-lasting performance, even in demanding industrial environments.
| Feature | Description |
|---|---|
| Type | Wire Mesh Filter Disk with Center Hole |
| Material | Stainless Steel (SS 304/316) or Galvanized Iron |
| Shape | Round with precision-cut center hole |
| Mesh Sizes | From fine micron mesh to coarse openings |

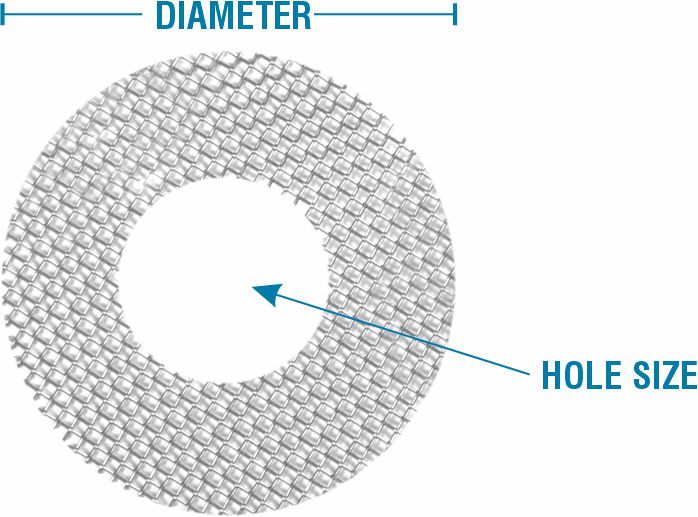

| Diameter Range | Customizable outer and inner (center hole) diameters |
| Layer Configuration | Single or multi-layer mesh construction |
| Surface Finish | Polished stainless steel / Zinc-coated galvanized finish |
| Temperature Resistance | SS: Up to 800°C / G.I.: Up to 200°C |
| Applications | Filtration with center mounting or flow path requirement |
| Purpose | Removes particles while allowing fluid or mechanical passage through center hole |
| Delivery | Quick delivery with standard dimensions in stock |
| Customization | Available in custom mesh counts, diameters, and hole sizes |
Permanent Filtration Performance:
Designed to maintain consistent filtration while providing a functional center opening, these filter disks ensure smooth fluid flow or easy mounting in various assemblies. Built for repeat use with minimal maintenance.Filtration & Flow Efficiency:
Mesh openings available to capture fine, medium, or coarse particles depending on application needs.
Center hole precision-cut for accurate alignment and secure fitting.
Suitable for both liquid and gas filtration systems.Material Construction:
Manufactured from high-quality stainless steel or galvanized iron mesh for durability and corrosion resistance.
Multi-layer options enhance filtration accuracy and mechanical strength.
Edges are securely finished to prevent fraying or mesh deformation.Different Designs Available:
Customizable in outer diameter, inner (hole) diameter, mesh size, and layer configuration.
Available in reinforced versions for heavy-duty applications.
Suitable for clamp, bolt, or gasket-based installations.
Compatible with flat or slightly curved mounting surfaces.Applications:
Common in hydraulic systems, chemical processing, plastic extrusion, and fluid handling equipment.
Used to protect pumps, valves, nozzles, and precision components from contamination.
Ideal for installations requiring both filtration and mechanical alignment via center hole.
Suitable for industries such as food processing, pharmaceuticals, and petrochemicals.Installation & Delivery:
Ready-to-use disks supplied to match equipment specifications.
Easy installation in housings, flanges, or custom mounting systems.
Custom manufacturing services available for non-standard sizes.
Standard dimensions and mesh grades kept in stock for fast dispatch.
